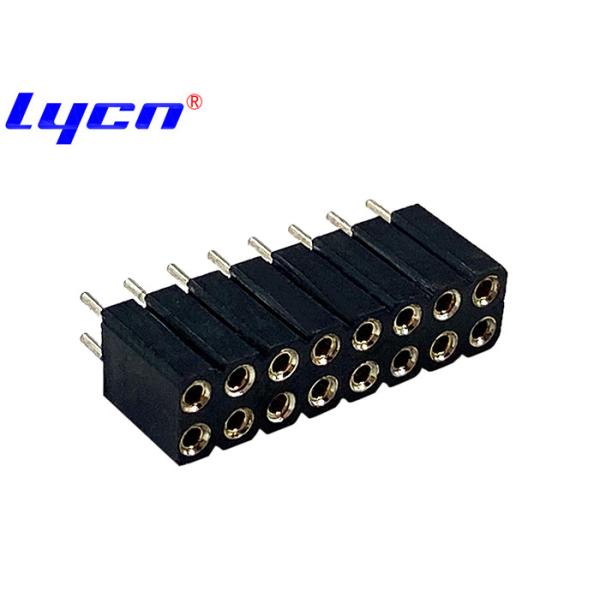

Straight 180° Matching Round Pin Header 1.27mm Circuit Board Connectors
Products Application
Wide Application: All of our products can be widely used in electronics, electrical appliances, instrument connection device, which mainly plays the role of a current or signal transmission.
Printed circuit board connectors are connecting systems used to transfer signals or power supplies from one PCB to another, or from another source built into the device to or from the PCB. Since PCBS are not hard-wired to each other, they can be assembled later in the production process, providing a simple design method for manufacturing.
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments:
- Parallel or mezzanine – both connectors are vertical orientation;
- 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
- 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
Specification
| Insulator Material | PPS+30%GF(UL94V-0) |
| Contact Clip | Beryllium Copper (C17200) |
| Gender | Female |
| Mating Pin | ∅0.31 To ∅0.48mm |
| Withdrawal Forces | 0.2 N Typ. |
| Insertion Forces | 0.5 N typ |
FAQ
1. Can I get some samples?
Yes, sample order is available for the quantity check and market test. You can contact with us for some free sample with freight collect.
2. What's the delivery time?
The delivery time will depends on the quantity that you need, which usually takes 7-14 days.
3. How to get the price faster?
Contact with us, give us your requirements, of course it's better that you can give picture or drawing or original No.
